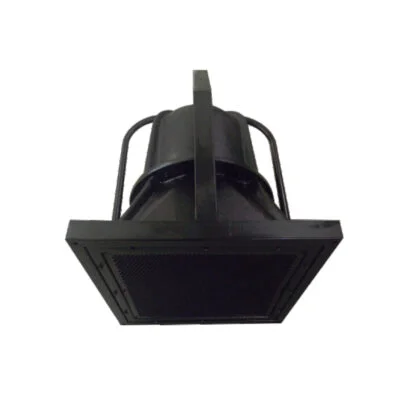

This high power outdoor systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures. Both models include front-loaded LF drivers in highly reinforced enclosures for natural, non-resonant low frequency reproduction, while identical voicing ensures a uniform listening experience.
|
MODEL |
RC-10V |
RC-12V |
RC-15V |
|
Rated power |
250W@8ohm ; 150W@100V |
400W@8ohm; 250W@100V |
600W @8ohm; 400W @100V |
|
Maximum power |
500W |
800W |
1200W |
|
Input |
8ohm/100V |
8ohm/100V |
8ohm/100V |
|
Sensitivity (1W/1M) |
99dB / 96dB ± 3dB |
99dB / 96dB ± 3dB |
100dB / 99dB ± 3dB |
|
Sensitivity Max |
119dB / 116dB ± 3dB |
124dB / 121dB ± 3dB |
127dB / 124dB ± 3dB |
|
Frequency response |
70Hz-20KHz |
70Hz-20KHz |
70Hz-20KHz |
|
Material |
Fiber glass body, Metal frame |
Fiber glass body, Metal frame |
Fiber glass body, Metal frame |
|
Speaker unit |
10” 75VC bass + 44 VC treble |
12” 75VC bass + 44 VC treble |
15” 75VC bass + 75 VC treble |
|
Product size |
630*450*450mm |
760*580*580mm |
760*580*580mm |
|
Weight |
26KG |
33KG |
35KG |
Ordering Code:
RC-10V: 250W@8ohm ; 150W@100V
RC-10V IP : 250W IP Net audio, Powered
RC-10V SIP : 250W SIP Net audio, Powered
RC-12V: 400W@8ohm; 250W@100V
RC-12V IP : 400W IP Net audio, Powered
RC-12V SIP : 400W SIP Net audio, Powered
RC-15V: 600W @8ohm; 400W @100V
RC-15V IP : 600W IP Net audio, Powered
RC-15V SIP : 600W SIP Net audio, Powered
