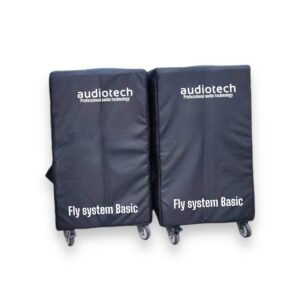

Fly System Basic 4Fly-110,2Fly-118 Line array
Features
- Front loaded array element, passive system
- Trapezoidal enclosure
- 10″ MF (3in VC) + 1.4″ HF NEO (2.56in VC) EU transducers
- 18”LF (4in VC)
- 2x NL4 connected in parallel
- Bi-amp operation
- High performance and crystal clear reproduction
- Faithful dynamic response and great range
- Integrated rigging system for stacked and flown configurations
- Rugged and durable 15mm birch plywood construction
- Powder coated custom perforated steel grille
Specifications
| TYPE | 2-way line array elements
Single18”-inch flying sub |
|
| ENCLOSURE DESIGN | Trapezoidal array enclosure
flyable subwoofer |
|
| POWER OUTPUT (RMS) | 600W (RMS) top 1200W (Program)top 2400W (Peak)top900W (RMS)sub1800W(Program)sub3600W (peak)sub |
|
| FREQUENCY RANGE | 85Hz – 20kHz (-10dB)top
38Hz-200Hz(-6dB) sub |
|
| NOMINAL IMPEDANCE | 8Ohm top
8Ohm sub |
|
| TRANSDUCER TYPE | 10″ MF (3in VC) EU transducer 1.4″ HF NEO (2.56in) EU transducer18”(4 in VC)LF transducer Fly118 |
|
| DISPERSION | Horizontal: 100° Vertical: 7° |
|
| CROSSOVER FREQUENCY | 1600Hz Bi-amp operation, user-selectable |
|
| MAX. SPL (PEAK) | 129@1m <fly110> 136@1m <fly118> |
|
| INPUT SENSITIVITY | 97db<fly110> 96db<fly118> |
|
| CONNECTOR | 2x NL4 in parallel | |
| CONSTRUCTION | 15mm brich plywood, rugged polyurea coating
with fly ware |
|
| GRILLE | Custom perforated metal grille with acoustic foam | |
| INSTALLATION / RIGGING / FLYING | Integrated rigging flyware Splay angle adjustable, 8° (1° increments) Ø9.8mm ball pins w/ stainless steel lanyard with PVC |
|
| DIMENSIONS (WXDXH) | 540x430x310mm
540x740x520mm |
|
| WEIGHT | 21kg
52 kg |
